IME SA provides a wide range of industrial applications temperature transmitters in different versions according to the applications for which they were designed:

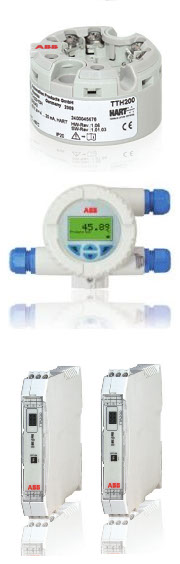

• Head-mounted transmitters;
• Field transmitters; and
• Rail-mounted transmitters.



HEAD-MOUNTED TRANSMITTERS



Being the most common solution in industrial applications it has as main features, the universality of the applications, the reliability and the relation cost/effectiveness (essentially because it does not need a compensation cable for transmission). Also, the following key features turn this solution very popular:



• Universal input for sensors;
• Redundancy checking features and sensor offset;
• Outside easy application of the connection system.



FIELD TRANSMITTERS



Whenever the operator needs a visual indication to control the process or in case of harsh environments, temperature, vibration or proximity of electromagnetic sources the solution goes through having a totally sealed electronic unit with a visual indication of the reading. Also, the following key features turn this solution very versatile and user-friendly:



• Built-in monitor with direct configuration of the device;
• Redundancy checking features and sensor offset;
• SIL2 Certification.



RAIL-MOUNTED TRANSMITTERS



Whenever we have several temperature sensors (PTC or thermocouple) in a small space and we need and we intend to focus all such information in a single physical control space, it is usual to make use of the rail transmitters. Also, this transmitters have the following key features:



• Universal input for sensors;
• 2 LED indicators (green for operating indication and red to indicate when the unit or sensor is not working);
• Mechanical lock configuration, avoiding unintentional tampering.
