In addition to the wide range of liquid analyzers, IME SA provides Chlorine Dioxide Generators which allow the generation of chlorine dioxide solutions in various ranges, from generators that produce between 2g / day and up to 10g / hr, to solutions that allow to produce between 900 g / h and 45 kg / hr.



Chlorine Dioxide is mainly used for the treatment and disinfection of drinking water, preventing the formation of trilometer. It is also used to prevent the formation of bromate when it is present in treated water for the eradication of the pathogens causing Giardia and Cryptosporidium diseases, and can also be used to remove phenolic compounds that provoke the taste of drinking water and odor problems .



PRINCIPLE OF MEASURE:



Chlorine Dioxide is generated by the reaction of two reactants, Hydrochloric Acid (8.5%) and Sodium Chlorite (7.5%).

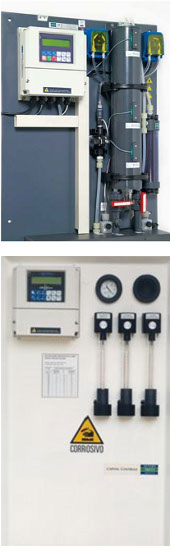

Two peristaltic pumps control the automatic addition of the two reactants to a reaction tower, where chlorine dioxide is generated. The solution is then diluted to a 1 g / l solution, flowing from the reaction tower into a storage chamber. The storage tank section is vented to the atmosphere through a carbon filter, which removes residual chlorine dioxide vapors. The microprocessor automatically controls the chlorine dioxide generation process from filler, dilution and storage reagents.



 COMMON APPLICATIONS:



• Consumer Waters - Disinfection, reduction of the total level of Trilomethanes and removal of Iron and Manganese;
• Beverage and Food Industry - Microbiological monitoring and control in low concentrations, with no taste or odor;
• Water Networks in Buildings - Control of the existence of Legionella in central systems of hot and cold water;
• Cooling Water - Wide range of biocidal action, with no pH restrictions and corrosion problems;
• Wastewater - Oxidation and Reduction of Chemicals and Pesticides, odor control in purification systems and bacteria;
• Pulp and Paper Industry - Bacteria control in paper machines.



FUNCTIONALITIES:



• Remote Operational - The generator can be operated remotely, not requiring in most of its functions the presence of an operator;
• Dosing Flexibility - The generator produces a solution of chlorine dioxide that can be dosed according to the specification and requirement of the process, according to the required specification;
• Ease of Operations - Through a completely automatic and intuitive program the operation of this generator is extremely simple and direct, substantially reducing operational costs;
• Modularity and Auxiliary Components - The system offers superior flexibility with the possibility of integrating new optional elements, such as a metering pump, sensors and control devices, among others, fully compatible and that can be configured according to the desired application.
